Vinyl Stair Treads
Durable and dependable for interior applications
Safety starts here
Made of tough, long-wearing vinyl, Flexco vinyl stair treads are engineered to meet all the demands of high-traffic areas. These treads offer a specially designed safety-ribbed surface and are available in a variety of colors with customizable rubber inserts and grit strips.
High-performance vinyl stair treads
- Available in 14 popular colors with round and square nose options
- Standard weight in 5/32" gauge for residential applications
- Commercial weight in 1/4" gauge for heavy traffic
- Coordinated risers and stringers available
- Exceed ADA recommendations for slip resistance
- Highly resistant to soil and stains
Certifications
![FloorScore_SCS_4C](https://flexcofloors.com/wp-content/uploads/2023/04/FloorScore_SCS_4C.png)
![SCS_Sustainability_Assessment_Flooring_NSFANSI_L1_GN-square](https://flexcofloors.com/wp-content/uploads/2023/11/SCS_Sustainability_Assessment_Flooring_NSFANSI_L1_GN-square.png)
![made-with-plant-based-plasticizer-white-background](https://flexcofloors.com/wp-content/uploads/2023/05/made-with-plant-based-plasticizer-white-background.png)
![made-in-the-usa-white-background](https://flexcofloors.com/wp-content/uploads/2023/04/made-in-the-usa-white-background.png)
IDEAL FOR
Specifications

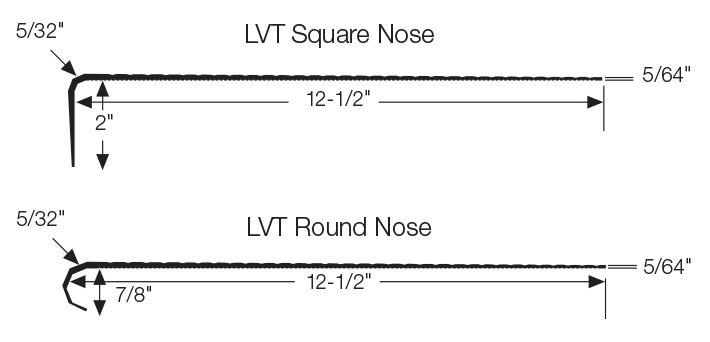

![](/wp-content/uploads/2023/05/VinylTread_StandardSafetyRib_R1-e1492111306953.jpg)
Gauge | 5/32" at nose |
Depth | 12-13/32" square 12-11/32" round |
Lengths | 42", 48", 72" 36" available w/ min. order 50 treads |
Nose | Round or square |
Pcs./Carton | 10 |
Lbs./Lin. Ft. | 1.5 Lbs. |
Notes | LVT treads are not available with glow-in-the-dark grit strips or smooth and ribbed rubber inserts. |
![](/wp-content/uploads/2023/05/VinylTreadDetail_LVT.jpg)

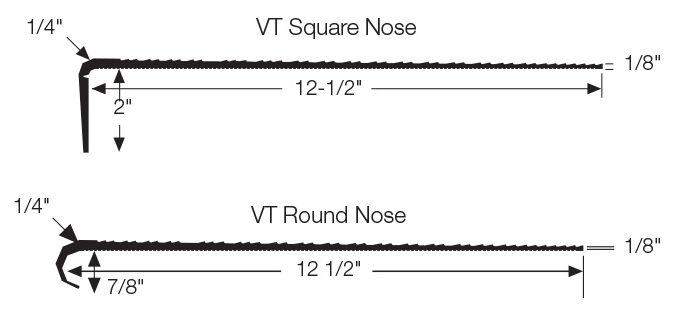

![](/wp-content/uploads/2023/05/VinylTread_CommercialSafetyRib-e1492111448949.jpg)
Gauge | 1/4" at nose |
Depth | 12-1/2" |
Lengths | 42", 48", 72" 36" available w/ min. order 50 treads |
Nose | Round or square |
Pcs./Carton | 6 |
Lbs./Lin. Ft. | 2 Lbs. |
![](/wp-content/uploads/2023/05/VinylTreadDetail_VT.jpg)
![](/wp-content/uploads/2023/06/Vinyl_Risers.png)
![](/wp-content/uploads/2023/06/VinylStringers.png)
AVAILABLE COLORS
Smooth and ribbed rubber inserts available in all 68 FlexTones colors, plus Canary Yellow.
Abrasive grit strips are available in the following colors:
