Distinct Designs
Rubber stair treads
STYLE + SAFETY FROM DESIGN THROUGH INSTALLATION + BEYOND
In addition to enhanced coordination across commercial spaces, Distinct Designs Rubber Stair Treads install easily—typically without the use of epoxy nose filler—and require no added coatings, sealers or finishes, reducing exposure to chemicals. This collection also offers ribbed inserts, grit strips and tread options with a reinforced metal nose for added durability.
High-performance rubber stair treads
- Collection includes risers, stringers and landing tiles
- PVC-free, environmentally responsible construction
- Excellent resistance to fungi in accordance with ASTM G21
- 25-year warranty on metal-reinforced nose options
- Metal-reinforced nose available on Extra Heavy Duty Radial, Extra Heavy Duty Diamond and Heavy Duty Square2
IDEAL FOR
Certifications
Product brochure
INSERTS + STRIPS
Flexco offers a full line of smooth and ribbed rubber inserts, available in all 68 FlexTones colors plus Canary, as well as abrasive strips to complete your rubber tread installation.
Abrasive Strip Glow‑in‑the‑Dark
(in light)
Abrasive Strip Glow‑in‑the‑Dark
(in dark)
Ribbed Tread
Smooth Tread
Abrasive grit strips are available in the following colors:
Black
Brown
Yellow
Gray
White
Glow-in-the-Dark
Available Profiles
- Heavy Duty Smooth 120, 130 + 170
- Extra Heavy Duty Radial 500 + 575
- Heavy Duty Radial 550 + 585
- Extra Heavy Duty Diamond 600 + 675
- Heavy Duty Diamond 650 + 685
- Heavy Duty Radial II 701 + 776
- Heavy Duty Extended Radial II 701E + 776E
- Heavy Duty Square2 800 + 875
- Heavy Duty Hammered Tread with Adjustable Square Nose 900 + 975
- Heavy Duty Radial II One-Piece Tread with Riser 1701 + 1776
- Heavy Duty Hammered One-Piece Tread with Riser 1900 + 1975

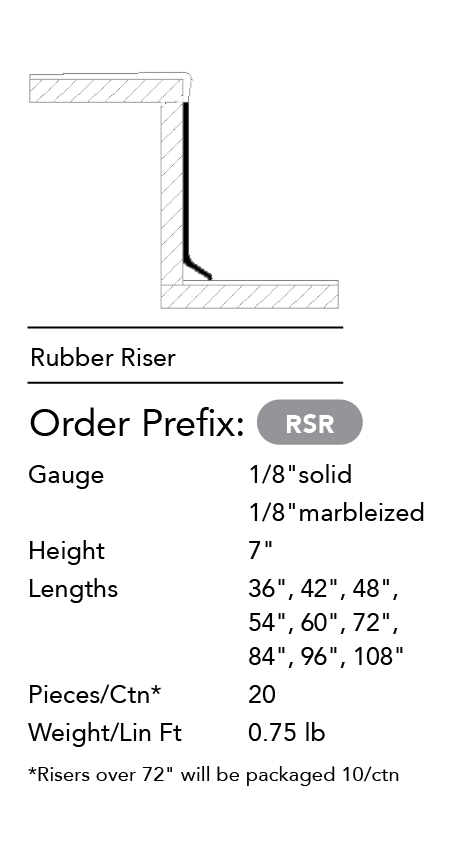

- Risers + Stringers
- Diamond Landing Rubber Tile
- Warning Tile
Heavy Duty Smooth 120, 130 + 170
Tech Specs
| Gauge | 3/16" at nose |
| Depth | 12-1/4" |
| Lengths | 36", 42", 48", 54", 60", 66", 72" |
| Nose | Square |
| Pcs./Carton | 10 |
| Lbs./Lin. Ft. | 1.5 Lbs. |
| Matching Profile | Smooth tile or sheet and Diamond landing |
| Notes | Grit strips for 130 in black only. 170 treads are not available with Glow-in-the-Dark grit strips or smooth and ribbed rubber inserts. |
Diagrams
Extra Heavy Duty Radial 500 + 575
Exclusive metal-reinforced nose included.
Tech Specs
| Gauge | 5/16" at nose |
| Depth | 12" |
| Lengths | 36", 42", 48", 54", 60", 66", 72" |
| Nose | Square |
| Pcs./Carton | 6 |
| Lbs./Lin. Ft. | 2.8 Lbs. |
| Matching Profile | Radial High Profile (RBT) |
Diagrams
Heavy Duty Radial 550 + 585
Tech Specs
| Gauge | 3/16" at nose |
| Depth | 12" |
| Lengths | 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96", 102", 108" |
| Nose | Square, adjustable to 60° |
| Pcs./Carton | 6 (72" or less) 4 (78" and up) |
| Lbs./Lin. Ft. | 2.4 Lbs. |
| Matching Profile | Radial High Profile (RBT) |
Diagrams
Extra Heavy Duty Diamond 600 + 675
Exclusive metal-reinforced nose included.
Tech Specs
| Gauge | 5/16" at nose |
| Depth | 12" |
| Lengths | 36", 42", 48", 54", 60", 66", 72" |
| Nose | Square |
| Pcs./Carton | 6 |
| Lbs./Lin. Ft. | 2.8 Lbs. (600) 2.4 Lbs. (675) |
| Matching Profile | Smooth tile or sheet and Diamond landing |
Diagrams
Heavy Duty Diamond 650 + 685
Tech Specs
| Gauge | Square 1/4" at nose Round 7/64" at nose |
| Depth | 12" |
| Lengths | 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96", 102", 108" |
| Nose | Round Nose only up to 72" in length |
| Pcs./Carton | 6 (72" or less) 4 (78" and up) |
| Lbs./Lin. Ft. | 2.25 Lbs. |
| Matching Profile | Smooth tile or sheet and Diamond landing |
Diagrams
Heavy Duty Radial II 701 + 776
Tech Specs
| Gauge | 3/16" at nose |
| Depth | 12" |
| Lengths | 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96", 102", 108" |
| Nose | Square, adjustable to 60° |
| Pcs./Carton | 6 (72" or less) 4 (78" and up) |
| Lbs./Lin. Ft. | 2 Lbs. |
| Matching Profile | Radial II (RGT) |
Diagrams
Heavy Duty Extended Radial II 701E + 776E
Tech Specs
| Gauge | 1/4" at nose |
| Depth | 15" |
| Lengths | 36", 42", 48", 54", 60", 66", 72" |
| Nose | Square, adjustable to 60° |
| Pcs./Carton | 6 (48" or less) 4 (54" and up) |
| Lbs./Lin. Ft. | 2 Lbs. |
| Matching Profile | Radial II (RGT) |
Diagrams
Heavy Duty Square2 800 + 875
Exclusive metal-reinforced nose included
Tech Specs
| Gauge | 1/4" at nose |
| Depth | 12-1/4" |
| Lengths | 36", 42", 48", 54", 60", 66", 72" |
| Nose | Square |
| Pcs./Carton | 6 |
| Lbs./Lin. Ft. | 2.8 Lbs. |
| Matching Profile | Square2 (SQ) |
Diagrams
Heavy Duty Hammered Tread with Adjustable Square Nose 900 + 975
Tech Specs
| Gauge | 13/64" at nose |
| Depth | 12-1/2" |
| Lengths | 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96", 102", 108" |
| Nose | Square, adjustable |
| Pcs./Carton | 6 (72" or less) 4 (78" and up) |
| Lbs./Lin. Ft. | 2 Lbs. |
| Matching Profile | Hammered (SE) |
Diagrams
Heavy Duty Radial II One-Piece Tread with Riser 1701 + 1776
Tech Specs
| Gauge | 1/4" at nose |
| Depth | 20-1/2" |
| Lengths | 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96", 102", 108" |
| Nose | Square, adjustable to 60° |
| Pcs./Carton | 6 (48" or less) 4 (54" and up) |
| Lbs./Lin. Ft. | 2.5 Lbs. |
| Matching Profile | Radial II (RGT) |
Diagrams
Heavy Duty Hammered One-Piece Tread with Riser 1900 + 1975
Tech Specs
| Gauge | 13/64" at nose |
| Depth | 20-3/8" |
| Lengths | 36", 42", 48", 54", 60", 66", 72", 78”, 84”, 90”, 96”, 102”, 108” |
| Nose | Square |
| Pcs./Carton | 6 (72" or less) 4 (78" and up) |
| Lbs./Lin. Ft. | 2.5 Lbs. |
| Matching Profile | Hammered (SE) |
Diagrams
Diamond Landing Tile
Rubber, diamond-pattern landing tiles are available in all three Distinct Designs Studio Collection palettes to coordinate with our stair treads, ADWT, risers and stringers.
Tech Specs
Order Prefix: DSA
| Gauge | 3/16" |
| Size | 27" × 27" |
| Pcs./Carton | 6 |
| Lbs./Carton | 40.2 Lbs. |
| Sq. Ft./Carton | 30.37 |
Warning Tile
Assurance detectable warning tile (ADWT) features deeply set, pre-grooved strips that alert those who are visually impaired of approaching interior stairways.
Meets ANSI A117.1-2017 Section 705.4 for detectable warnings in interior locations
Tech Specs
Order Prefix: ADWT
| Gauge | 1/8" | 1/8" | 1/8" |
| Size | 12" × 12" | 12" × 36" | 36" × 36" |
| Pcs./Carton | 45 | 18 | 6 |
| Lbs./Carton | 50 Lbs. | 60 Lbs. | 60 Lbs. |
| Sq. Ft./Carton | 45 | 54 | 54 |
DISTINCT DESIGNS STUDIO COLLECTION COLOR PALETTES
Information Library
Important Technical Information
Warranty
Specification Info
EPD + HPD
Certifications
Excelsior
| Title | Link |
|---|---|
| 631 Water Based Contact Adhesive – Data Sheet | |
| AW-510 Acrylic Wet Set Adhesive – Data Sheet | |
| EN-610 Epoxy Nose Filler – Data Sheet | |
| EW-710 Urethane Enhanced Epoxy – Data Sheet | |
| PS-525 Modified Pressure Sensitive Adhesive – Data Sheet | |
| TP-620 Pressure Sensitive Stair Tread Tape Adhesive – Data Sheet | |
| U-705 Urethane Wet Set Adhesive – Data Sheet |
Submittals
| Title | Link |
|---|---|
| Rubber Risers, Submittal | |
| Rubber Stair Tread, #120 Submittal | |
| Rubber Stair Tread, #130 Submittal | |
| Rubber Stair Tread, #170 Submittal | |
| Rubber Stair Tread, #1701 Submittal | |
| Rubber Stair Tread, #1776 Submittal | |
| Rubber Stair Tread, #1900 Submittal | |
| Rubber Stair Tread, #1975 Submittal | |
| Rubber Stair Tread, #500 Submittal | |
| Rubber Stair Tread, #550 Submittal | |
| Rubber Stair Tread, #575 Submittal | |
| Rubber Stair Tread, #585 Submittal | |
| Rubber Stair Tread, #600 Submittal | |
| Rubber Stair Tread, #650 Submittal | |
| Rubber Stair Tread, #650RN Submittal | |
| Rubber Stair Tread, #650SN Submittal | |
| Rubber Stair Tread, #675 Submittal | |
| Rubber Stair Tread, #685 Submittal | |
| Rubber Stair Tread, #685RN Submittal | |
| Rubber Stair Tread, #701 Submittal | |
| Rubber Stair Tread, #701E Submittal | |
| Rubber Stair Tread, #776 Submittal | |
| Rubber Stair Tread, #776E Submittal | |
| Rubber Stair Tread, #800 Submittal | |
| Rubber Stair Tread, #875 Submittal | |
| Rubber Stair Tread, #900 Submittal | |
| Rubber Stair Tread, #975 Submittal | |
| Rubber Stringers, Submittals |
